One certificate on two servers

What you'll have at the end: one certificate and one private key, served from two Scouts, renewing on one schedule and delivering itself to both boxes automatically — no more remembering to copy a file by hand after every renewal.

Prerequisites:

  • Two enrolled, active Scouts — see Scout → Install procedure if either isn't set up yet. This guide calls them box A (where you'll order the certificate) and box B (the second server that also needs it).
  • A DNS-01 renewal profile (manual or automatic) — replicated certificates are DNS-01-only by policy: HTTP-01 and the internal CA cannot deliver to a second Scout at all, and Cyphers refuses to even let you pick HTTP-01 here once box B's copy exists (more on why below).
  • Both boxes' cert-dirs.conf covering the directory the certificate will live in on each of them, so their Scouts can see the file — see Track a new endpoint, Step 4.
  • Know every hostname the certificate needs to cover, and which box actually answers for each one.

Time: about 15 minutes, plus however long the one-time file copy takes you, plus a scan cycle (or trigger one) for the Hub to notice box B holds it.

Step 1 — Order the certificate on its owning Scout

On Manage, click + Add endpoint and fill in the form:

Field Value
Hostname the first name the certificate should cover, e.g. api.example.com
Additional names every other name it covers, one per line, e.g. sip.example.com
Port 443 (or the port box A actually serves this name on)
Scout box A
Renewal profile your DNS-01 profile

Click Add endpoint and let the first issuance close (drawer → Renewals tab: newest entry Closed). Box A is now this certificate's owner — the Scout its renewal is filed under, and will stay filed under, for as long as it keeps serving one of the names.

Step 2 — Copy the certificate and key to the second box, once

This is the one hand-copy the whole feature exists to make you never repeat. On box A's managed directory, find the four files for this certificate (fullchain.pem, cert.pem, chain.pem, privkey.pem — under {data-dir}/certs/<domain>/, or {data-dir}/certs/_wildcard.<zone>/ for a wildcard). Copy all four onto box B, at whatever path box B's own web server or daemon reads from — exactly like adopting an existing layout.

Point box B's TLS-terminating service at these files and reload it once by hand. This copy happens between the two boxes directly — the Hub never sees the private key at any point, before or after this step.

Where box B's Scout will eventually keep its own copy

Deliveries from the Hub land in box B's managed directory, {data-dir}/certs/<name>/, not wherever you put the files just now. You do not have to create that directory or guess its name: Step 4 has the Hub tell box B's Scout to copy the key it can already see into it. Your service can keep reading from the path it reads from today — Scout-side symlinks are the usual way to bridge the two, and the adopt-an-endpoint guide covers the layouts.

Make sure box B can see the file

If box B's Scout hasn't been told to watch this directory yet, add it to cert-dirs.conf and reload the Scout (see Track a new endpoint). A directory the Scout was never told about is a directory it will not read from or write to.

Step 3 — Let the Hub discover the second copy

Wait for box B's next scan cycle, or trigger one now (systemctl reload cyphers-scout on box B, or Scan now on its Scout page) so it scans the name it now serves.

You should now see, on Manage, box B join the certificate's Scout column beside box A (box-a · box-b, on the rows it serves and in the group header's union) — the Hub found it holding the same certificate at a live path and saw it actually serving one of the names the certificate covers. Open the endpoint's drawer and the Known certificates block lists box B as a replica, Current.

Step 4 — Turn on key reuse, and prime box B

Two things have to be true before the next renewal, and one control does both.

First, key reuse: go to Settings → Certificate issuance → Renewal Profiles, open the profile you used, and enable Reuse private key across renewals (for pins/DANE). This matters the moment a replica exists, not before: the next renewal would otherwise generate a fresh key for box A alone, which would no longer match the key sitting on box B — and the Hub refuses that renewal outright rather than let it happen. See Key reuse and pinning.

Second, priming box B. Editing the profile in Settings changes the policy; it does not touch box B. Before the Hub can install anything on a Scout it has never delivered to, that Scout has to hold the key under the name Cyphers manages the certificate by — otherwise the delivery arrives, finds no key where it looks, and refuses. Priming is what puts it there, and it never moves a key anywhere: it tells box B's own Scout to copy the key it already has on disk into its managed directory.

Two things prime, and both are on Manage, not in Settings:

  • Adopt on the certificate, if box B's endpoint isn't managed yet.
  • Change renewal policy in the endpoint drawer's renewal-profile card — re-selecting the same reuse profile there is enough, and is the normal route when everything is already adopted.

If box B was enrolled after the profile was set

This is the common ordering, and it means box B was never primed. Its first automatic delivery will fail and the row will read Behind with a note that it has not adopted the key yet. That is not a fault to chase: re-select the reuse profile (Change renewal policy, or Adopt — either re-primes every replica), and the convergence sweep ships the certificate on the Scout's acknowledgement. Every renewal after that is automatic.

If pre-flight asks you to Adopt key instead

That means the key isn't recognized as being under box A's own Scout management yet — run Adopt a private key first, then come back and enable reuse.

Step 5 — Renew, and watch both converge

Trigger Renew Now (or wait for the certificate's normal renewal window, or autopilot if it's enabled). The order itself runs exactly like any other renewal on box A. Once box A's install is acknowledged, the Hub ships the same new certificate and chain to box B — never the key, which stays exactly where it already was, and without waiting for box A's endpoint to verify on the wire — and box B's own Scout checks the delivered certificate against its on-disk key before installing it and reloading its own hook.

You should now see box B read Current in the drawer's Known certificates replica list within moments (briefly Delivering while the copy is in flight). Box A does not appear in that list at all: it is the owner, and the list is of the other Scouts holding the certificate.

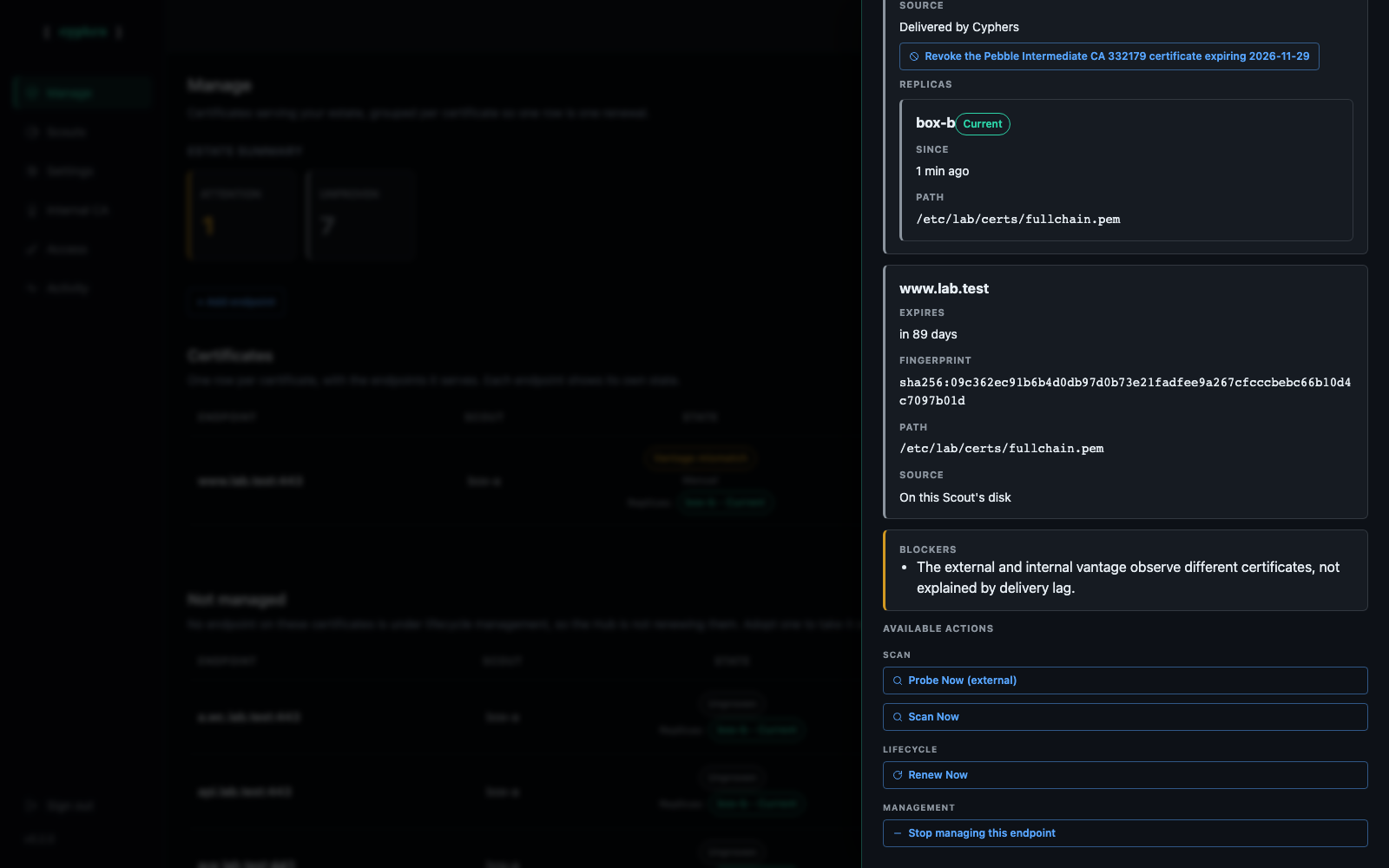

Endpoint drawer showing box B listed as a replica

If box B reads Behind instead, with the note about not having adopted the key yet, it was never primed — re-select the profile once, as Step 4's tip describes. From then on, every renewal on box A delivers itself to box B automatically, with nothing further to remember or repeat.

If a replica falls behind

If box B ever misses a delivery — offline at renewal time, a failed reload — its state reads Behind after about an hour, and the certificate's own row on Manage turns Action needed, naming box B. There is nothing to click: the Hub's convergence sweep re-sends the certificate the owner currently holds every few minutes until box B acknowledges it — the moment the box is back and its Scout is processing commands, it catches up on its own.

If the key on one side is ever rotated by hand

A replica's state reads Key differs when the last delivery attempt reached it but the certificate didn't pair with its on-disk key — almost always because that key changed outside of Cyphers since the last successful copy. The fix is the same either way: re-copy the current key from the owner (repeat Step 2), or remove the certificate from that box if it's no longer meant to serve it.

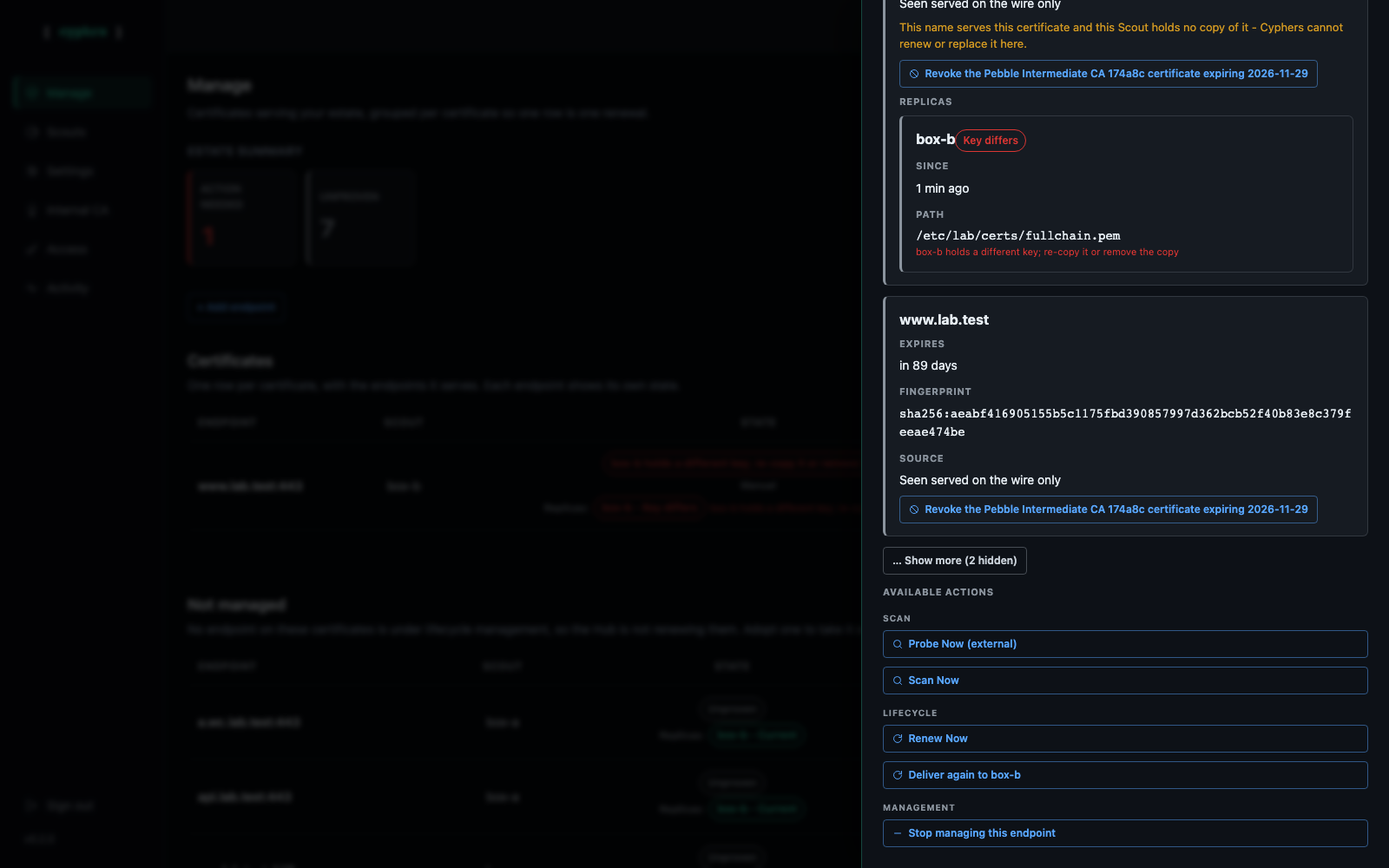

The drawer's Replicas card showing box-b in Key differs, with the note explaining the mismatch

Renewing the owner's certificate while a replica is in this state is refused before any order is created — see the next section.

What refuses, and why

replicated_requires_dns01 fires earlier than the rest — at Adopt or Policy, the moment you pick a renewal profile, not at renewal time — because replicated certificates are DNS-01-only by policy (operator ruling 2026-08-31). The other four are renewal-time refusals.

Refusal Why Fix
replicated_requires_dns01 You picked (or the endpoint's assigned profile already is) HTTP-01 for a certificate that already has a replica. Pick a DNS-01 profile instead.
replica_key_rotation The renewal would generate a fresh key while a replica holds the old one. Enable Reuse private key across renewals on the profile (Step 4), or remove the replica's copy if it no longer needs the certificate.
replica_key_mismatch A replica already holds a key that doesn't match — repairing that comes first, whatever this renewal's key policy is. Re-copy the key to that Scout (Step 2), or remove its copy.
replica_needs_hub_driven_lane The profile uses HTTP-01, which never hands the issued certificate back to the Hub — there's nothing to copy to a replica on that lane. Switch the profile to a DNS-01 method, or remove the copies if you don't need them delivered automatically.
replica_check_failed The Hub could not work out whether this certificate has replicas at all. A database problem, not a configuration one. Retry once the Hub is healthy; it refuses rather than risk stranding a replica.

A convergence delivery has its own outcomes (Activity feed, not buttons): no_presented_name means the covered-only wildcard case below, which no delivery can fix; delivery_unavailable and no_certificate mean the Hub does not hold something it would need to ship — usually the HTTP-01 lane, which never hands the Hub a copy.

Full detail, exact message text, and every other refusal on Manage: Recover from refusals.
